Project 1: Form and Function
this project underscores the need to harmonize aesthetics and utility when designing structures. Our task was to revamp an existing bridge to accommodate water traffic through a 30' x 40' opening.
CONCEPTUAL SPANS
we choose pictures of different types of bridges such as cable-stay, arch and cantilever bridges, we selected three and drew them in AutoCAD
Sydney Habor bridge
Arch bridge
Sydney, Australia
Tobin bridge
Cantilever
Boston, USA
East Huntington bridge
Cable-stay bridge
West Virgina, USA
CONCEPTUAL MOVEMNET
Vice clamp 3D model and movement
Eyelash curler 3D model and movement
Ice cream scooper 3D model and movement
3X3 Prototype Table
We took out three selected household objects and our conceptual spans to combine them into prototype moveable bridges
Selected Prototype
This is prototype is a combo of a cable-stay bridge and a eye lash curler
Final Design
Detail Views
South West
North West
North East
South East

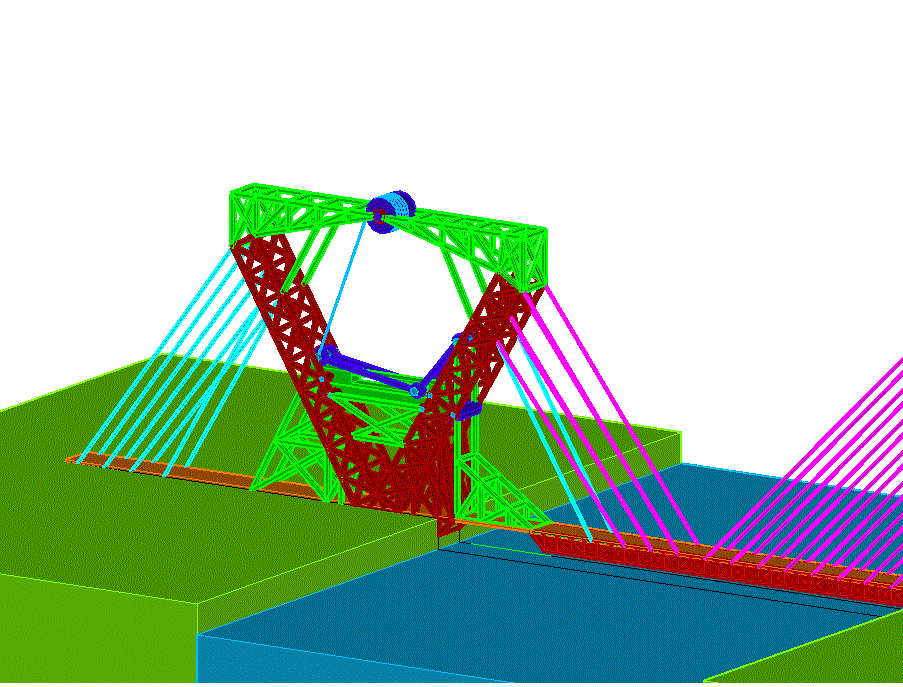

Bridge Process
3D Rotation Of Bridge
Renderings
Animation of Bridge
